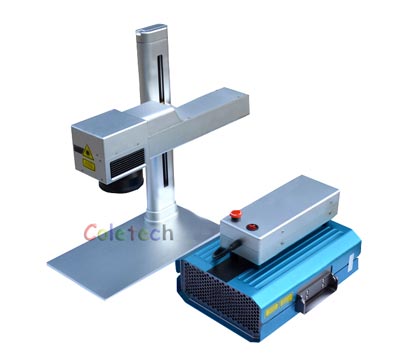

Highly integrated
Feature:
- Good laser beam and higher photoelectric conversion, the marking quality will be more finely and higher precision
- Air cooling,no water chiller.
- No maintenances (100,000 hours service time);Low operation cost
- High quality, permanent marks.
- Repetitive high precise,Rapid marking speed
- Easy to use by unskilled operator .
- Non-contact marking process, eliminates material stress .
- Multifunctional marking software; Software running on the WINDOWS platform, English interface, compatible with Coreldraw, AutoCAD, software such as Photoshop file; PCX, DXF, support PLT, BMP, SHX, TTF font can be used directly;
- Marks directly to product, eliminates labels-cost .
- Automatic serialization/date.
- Adaptable to various automated production line system including Mark-on-fly -parts moving .
- Marks directly to product, eliminates labels-cost .
- This model can achieve automatic arrangement and modification of text, logo, symbols ,images, graphics, bar code, two dimensional barcode, serial number automatically increasing, etc.
Model |
HP-10/ HP-20/ HP-30 |
|---|---|
Laser Power |
10W (20W/30W for optional) |
Laser Wavelength |
1064nm |
Q-frequency |
20KHz~100KHz |
Divergence |
0.3mard |
Marking Range |
50X50mm ; 300X300mm for optional |
Minimum Line Width |
0.02mm |
Minimum Character |
0.15mm |
Marking Depth |
0 ~0.5mm |
Engraving Line Speed |
≤7000mm/s |
Repeatability Accuracy |
±0.001mm |
Beam Quality |
M2:1.2~1.8 |
Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, |
Automatically Marking the Date,Batch number,Serial |
|
number,Frequency,etc. |
|
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
Working Voltage |
220V±10%/50Hz/4A |
Unit Power |
<0.5kw |
Use of the Environment |
Clean and Dust Free or Dust less |
Working Condition:Humidity |
5%-75%,Free of Condensed Water |
Laser Module Life |
>100000 hours |
Warranty |
two years |
| www.cncoletech.com | |
Applicable materials:
Jewelry; craft; medicine; cosmetics industries; car and motorcycle parts industry; sanitary ware; stationery; clock and watches, glasses industry; instrumentation industry, the electronic components industry; electrical appliances; communication products; jey industry;
Material:
Metal |
Non-metal |
Aluminum |
Polybutylene Terephthalate |
Stainless |
Makrolon polycarbonate |
Copper |
Black/White ABS |
Silicon Steel |
Nylon |
Yellow Chromate Aluminum |
Polysulphone |
Brass |
Rynite PET |
Nickel Plated Brass/Gold/Kovar/steel |
Santoprene |
Nickel Plated 1215 Mild Steel |
Silicon Carbide |
Hard coat anodized aluminum |
Glass filled teflon |
Machine Tool Steel |
White PEEK |
Magnesium |
Glass filled PEEK |
Metal Plated Ceramics |
Silicon Wafers |
Molybdenum |
Carbon Nanotube |
Carbon Fiber/Carbon Nanotube |
Colored Delrin |
Clear coat anodized aluminum |
GE Plastics Polycarbonate Resin 121-R |
Cobalt Chrome Steel |
|
Compacted Powder Iron /Iron Phosphate Coating |
|
